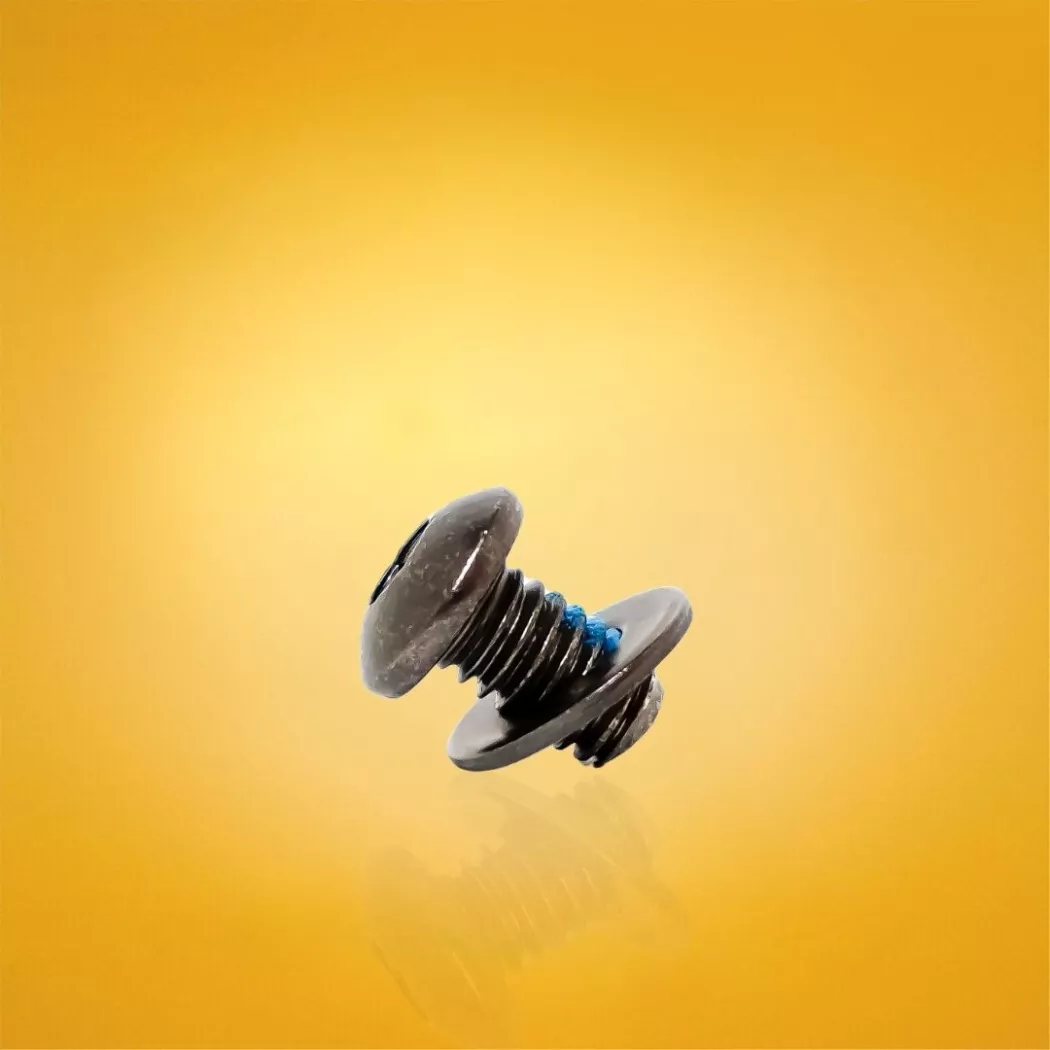

FR Skates Metal Plate Mounting Screw inch-thread screw for inline skates

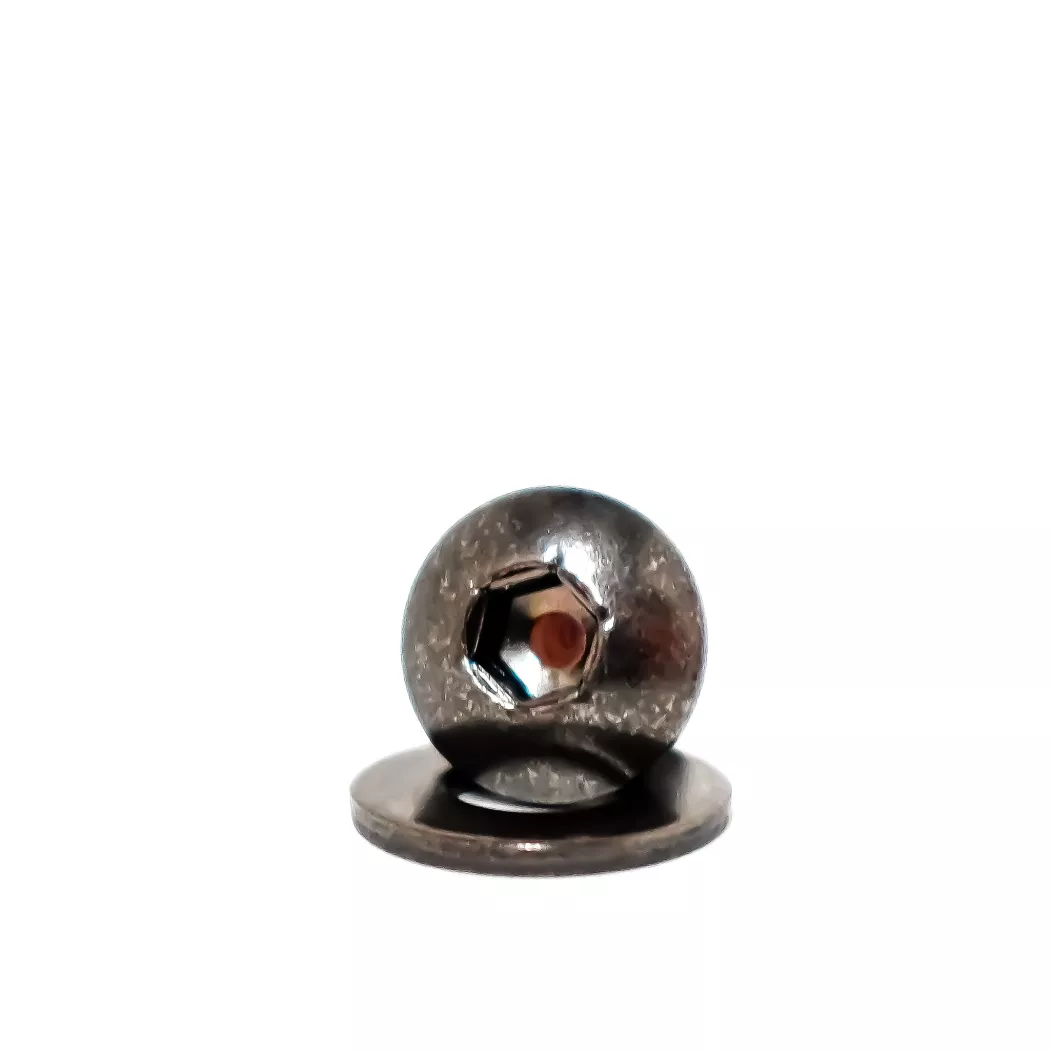

FR Skates Metal Plate Mounting Screw inch-thread screw for inline skates — photo 2

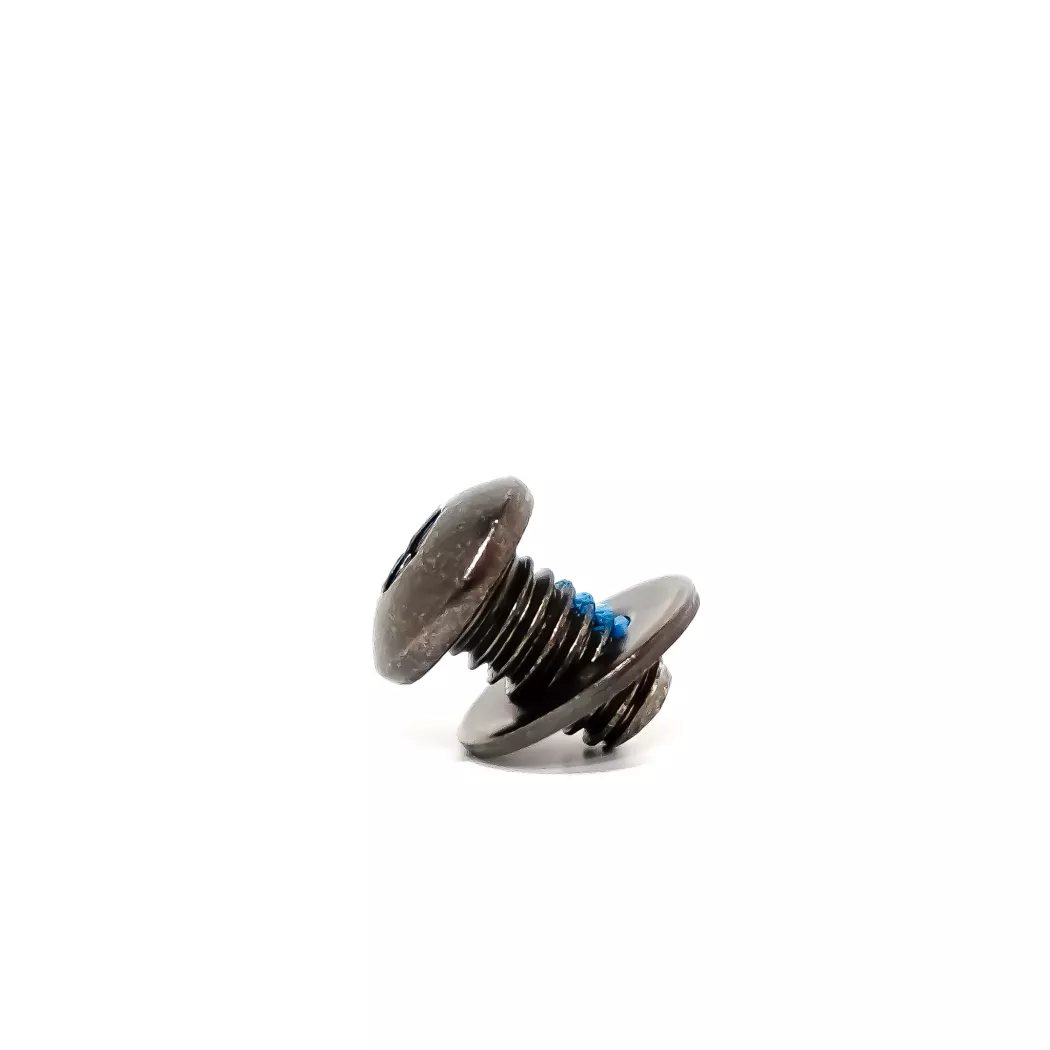

FR Skates Metal Plate Mounting Screw inch-thread screw for inline skates — photo 3

FR Skates Metal Plate Mounting Screw inch-thread screw for inline skates

frame screw · inch thread · 3/16” hex · steel · with washer

A steel screw with an inch thread that fixes the frame to the boot on FR1, FR2, FR3 and older SEBA skates — with a washer and thread-locking adhesive on the thread.

7.00 PLN

Poznań	in store
Wrocław	in store

Order today — delivery: Tuesday 27 Oct – Wednesday 28 Oct

Quantity

Delivery from 15.00 PLN · free pickup in Poznań and Wrocław
14 days to return — how to return or exchange a size

In brief

The FR Skates Metal Plate Mounting Screw is the original steel screw that fixes the frame to the boot on FR1, FR2 and FR3 skates and on older FR Skates and SEBA models with an inch thread in the sole. It has a wider thread than metric screws, a socket for a 3/16” hex key, factory-applied blue thread-locking adhesive and a washer included.

Brand: FR Skates
Type: screw fixing the frame to the boot
Model: Metal Plate Mounting Screw
Size: inch thread
Hex key: 3/16” hex key (inch)
Material: steel

Who it’s for

You skate on FR1, FR2 or FR3 and when replacing the frame one of the screws went missing or has a damaged socket.
You have older SEBA or FR Skates inline skates with an inch thread in the sole and metric screws do not fit them.
You are moving or replacing the frame and want new screws with the adhesive already applied to the thread.

When to choose something else

Your skates have a metric thread in the sole — an inch screw does not fit it; you will find the right one in the screws and sliders category.

Key features

Inch thread: Wider and thicker than in typical metric screws, so the frame is pressed more firmly against the sole. A metric replacement in this thread will be too small or too large.
3/16” hex socket: The head takes an inch hex key; the common 4 and 5 mm metric keys do not fit it. The right key with the red handle often comes with FR Skates inline skates.
Blue adhesive on the thread: The factory-applied threadlocker stops the screw from working loose through vibration as you skate — you do not need to glue the thread yourself.
Strong steel: A steel screw copes well with the loads the frame passes to the boot on pushes and landings.
Washer included: You get the screw together with a washer, so all you need for fitting is a key.

Technical specifications

Brand	FR Skates
Type	screw fixing the frame to the boot
Model	Metal Plate Mounting Screw
Size	inch thread
Hex key	3/16” hex key (inch)
Material	steel
Contents	screw with washer
Thread locking	factory-applied blue thread-locking adhesive (threadlocker)
Compatibility	FR1, FR2, FR3; older FR Skates and SEBA inline skates with an inch thread in the sole
EAN	3701118874190

In the box

Metal Plate Mounting Screw
Washer

Care and servicing

Check the frame screws every few rides and tighten them with a 3/16” key with a light touch, so as not to damage the thread in the sole.

Questions and answers

Does this screw fit FR1, FR2 and FR3?

Yes. It is the original frame screw for these models, and for older FR Skates and SEBA inline skates that have a factory inch thread in the sole.

What key do I need?

A 3/16” hex key. Metric 4 and 5 mm keys do not fit. The original key with the red handle often comes with FR Skates inline skates, and if you do not have one, you can buy a 3/16” key from us.

Can I use an ordinary metric screw?

No. Metric screws in an inch thread are too small or too large and do not hold the frame securely.

Do I need to put adhesive on the thread?

No. The thread has blue threadlocker applied at the factory, which stops the screw from working loose as you skate.

Will you help with fitting the frame?

Yes. We will fit the frame with the new screws in our service workshop at the shop in Poznań or Wrocław.
